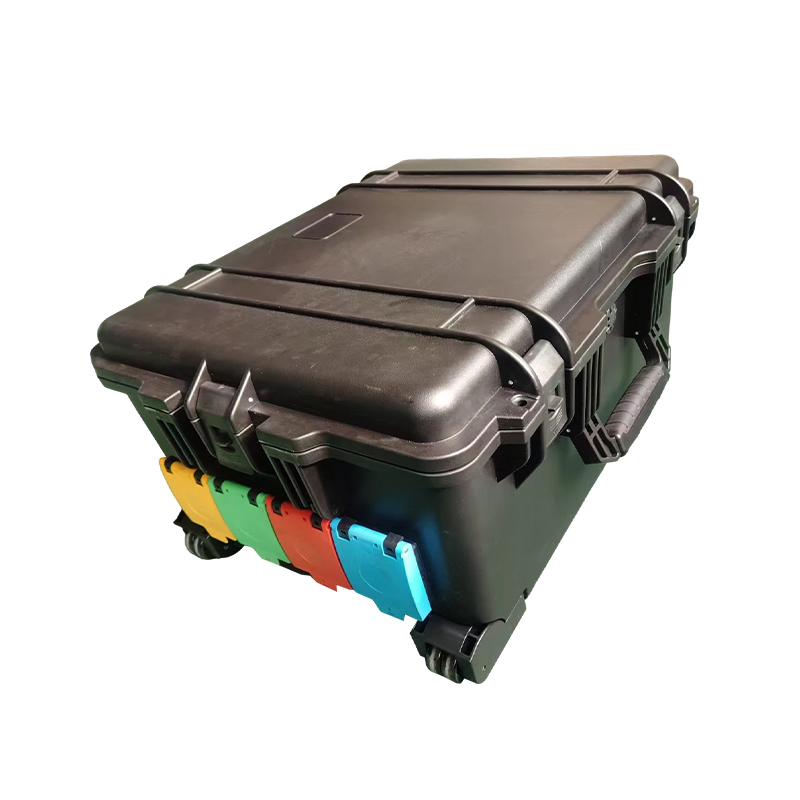

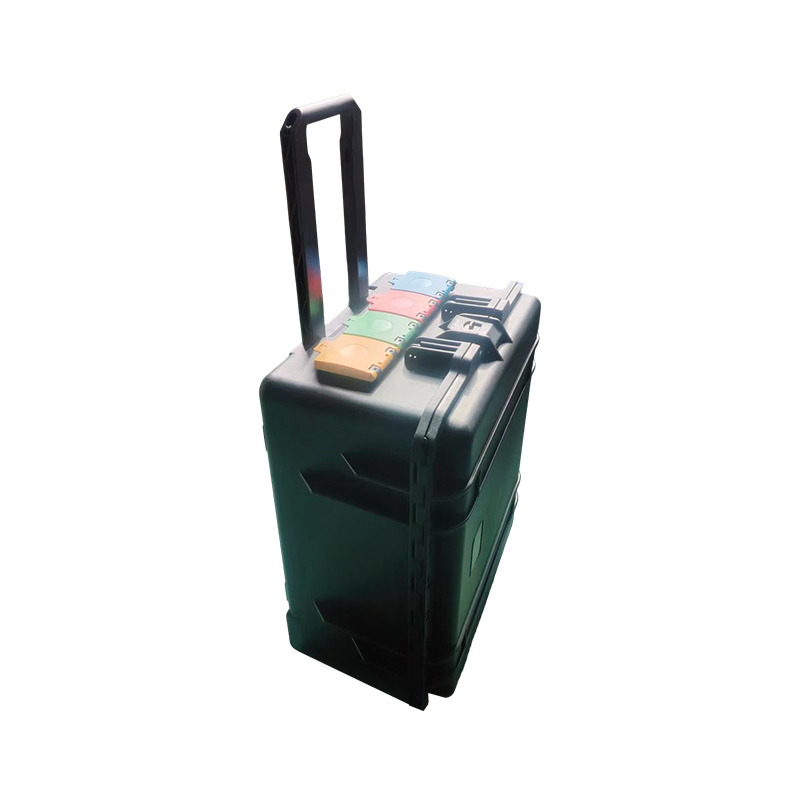

Generator Grid Box

DWP-0.4/630-3P
Customize according to the picture.
Solve the need for power generation vehicles (diesel/gas generators, energy storage power vehicles) to quickly access the power grid and achieve:Seamless on-grid and off-grid switching: support island detection, switching time ≤200ms.Multi-mode operation: grid-connected power supply, off-grid independent power supply, master-slave synchronous control.Power quality control: THD≤3%, voltage fluctuation ±2%, meet GB/T 14549 standard.Safety protection: with reverse power protection, overload lockout, and anti-asynchronous closing function.

Consult

Features Technical Indicators Overall Dimension

1. Emergency repair of urban power grids
The generator truck is connected to the distribution network to replace the faulty line power supply (supporting 0.4kV/10kV voltage level).
2. Power supply for major events
Multiple generator trucks are operated in parallel, and power is evenly distributed through master-slave control (circulation suppression <5%).
3. Power supply in remote areas
Microgrids are formed with photovoltaic/energy storage to support long-term stable operation in off-grid mode.
Product technology highlights

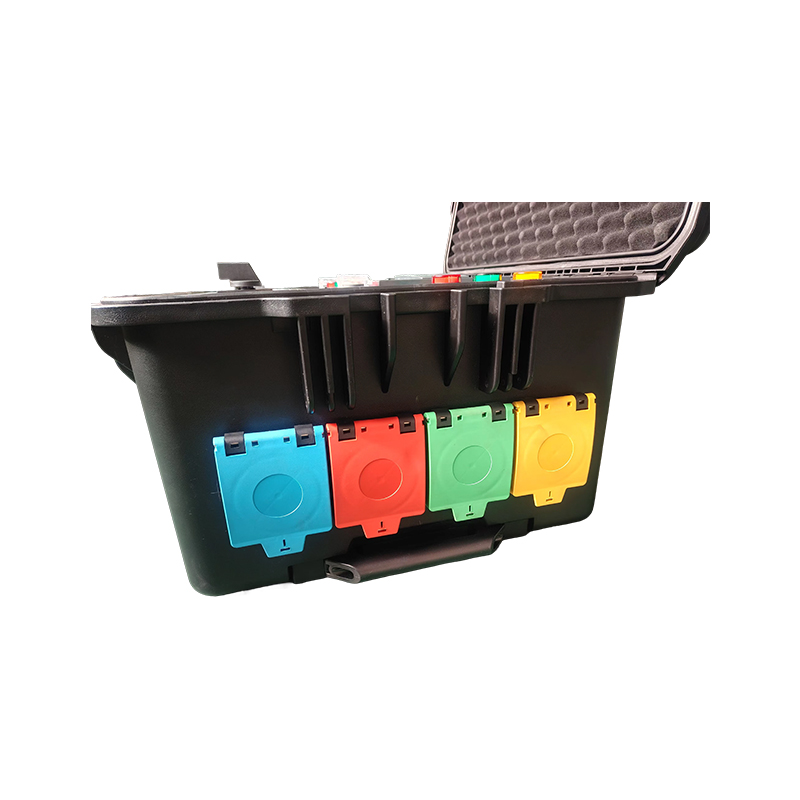

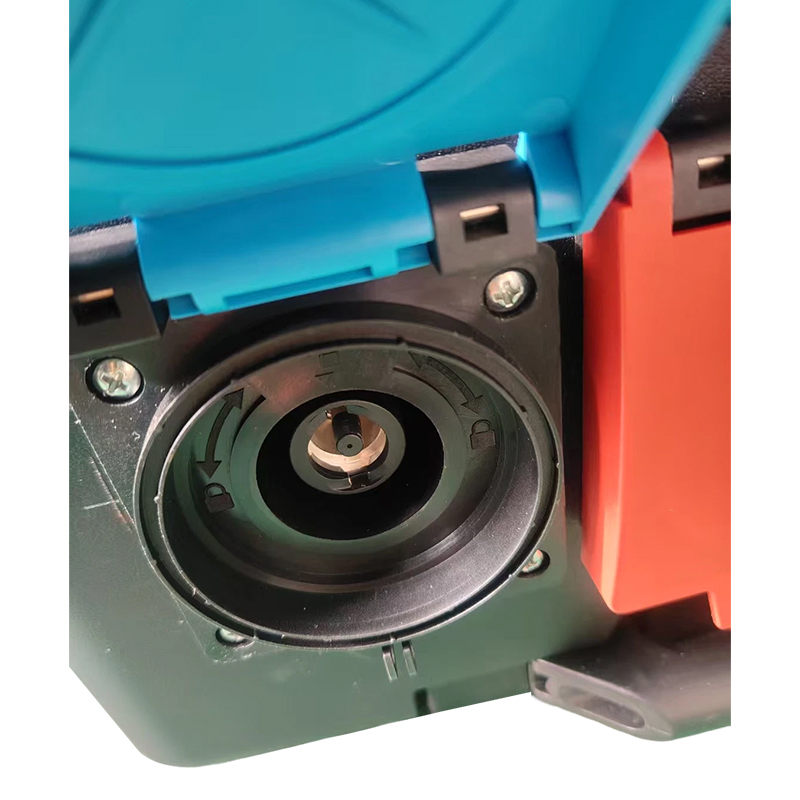

Quick plug-in interface: standard industrial-grade IP67 grid-connected socket, resistant to 1000 plug-in and pull-out.
Adaptive synchronization: built-in DSP digital phase-locked loop, frequency tracking accuracy ±0.02Hz.

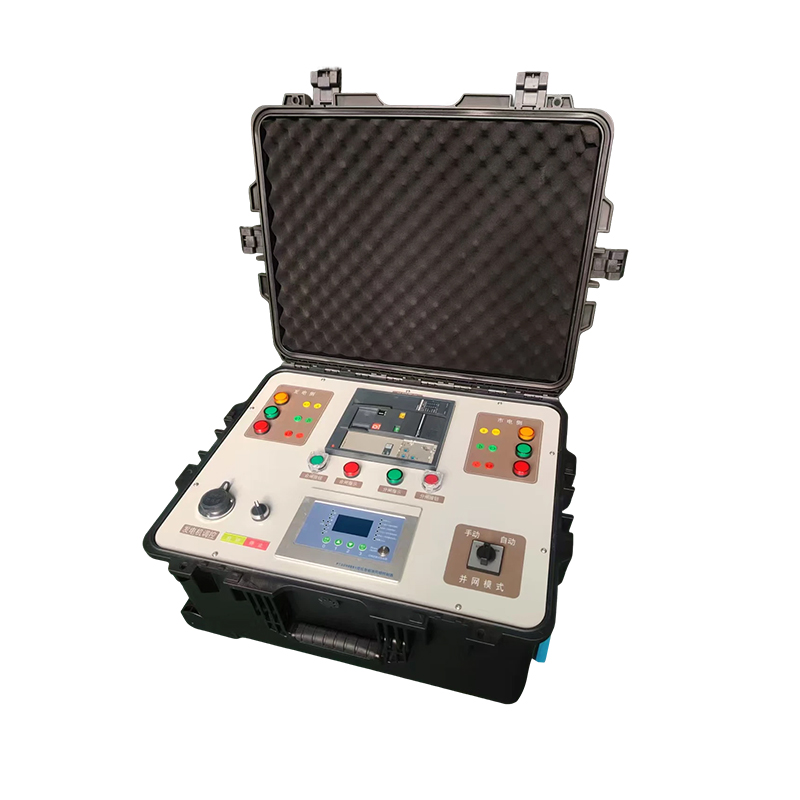

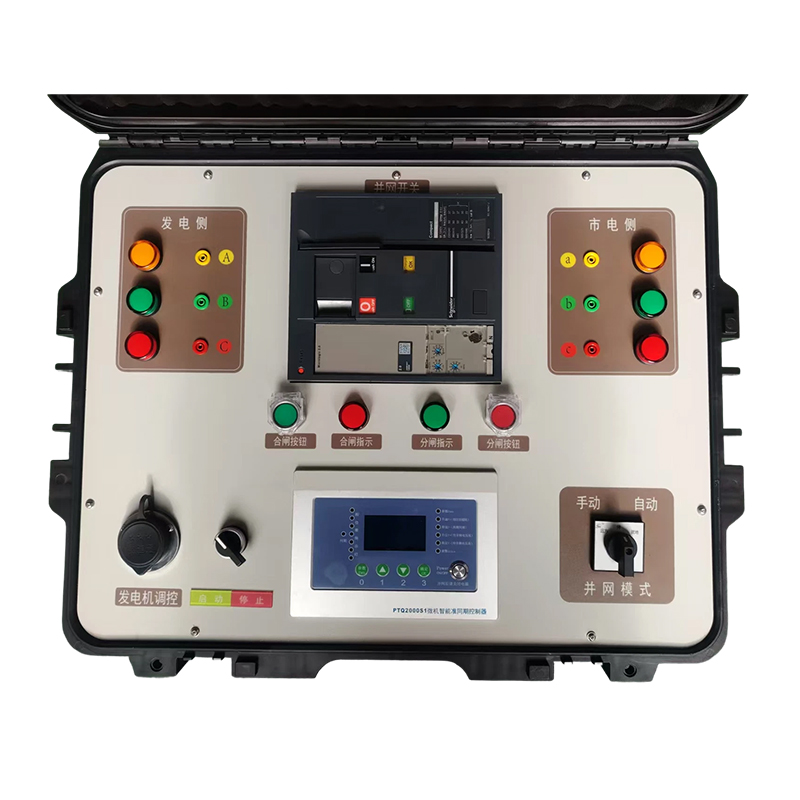

Intelligent alarm: LED screen display + sound and light alarm, real-time prompt of phase reverse connection, abnormal grounding and other faults.
Mobile adaptation: anti-seismic design (IEC 60068-2-6 standard), support vehicle bumpy environment.

Parameter‌	‌Basic type‌	‌Intelligent‌	‌High voltage type‌ (10kV grid-connected)
‌Input voltage range‌	AC 380V±15%	AC 380V±20%	AC 10kV±10%
‌Rated capacity‌	200kVA~800kVA	500kVA~2MVA	1MVA~5MVA
Grid connection time‌	≤5 minutes (manual frequency adjustment)	≤30 seconds (automatic synchronization)	≤2 minutes (with SVG compensation)
RS485+Dry Contact	RS485+Dry Contact	Modbus TCP+4G/IEC 61850	IEC 61850-90-7
Protection level‌	IP54	IP67 (fully sealed explosion-proof)	IP67 (fully sealed explosion-proof)
‌Typical adaptation scenarios‌	Community emergency power supply	Data Center/Hospital Uninterrupted Power Supply	Urban power grid black start
